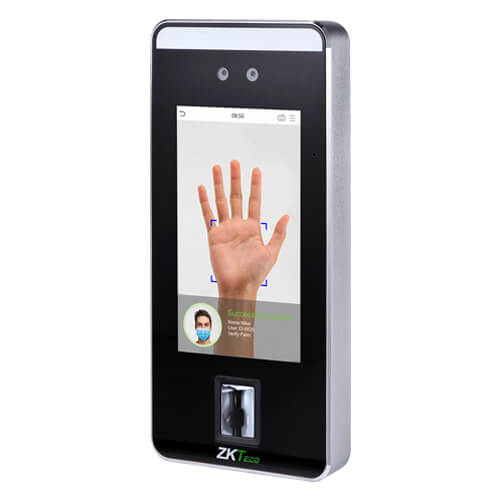

SpeedFace-V5L Terminal
The SpeedFace-V5L Series employs intelligent engineering facial recognition algorithms and cutting-edge computer vision technology. It offers support for fingerprint, facial, and palm verification with large capacity and speedy recognition. Moreover, the SpeedFace-V5L is equipped with QR code support via Mobile APP, further enhancing the device’s security performance in all aspects.
SpeedFace-V5L Series uses touchless recognition technology and can identify individuals even when wearing masks, making it a hygienic option. Additionally, it has an advanced anti-spoofing algorithm that can detect fake photos and videos. It also features 3-in- 1 palm recognition, which can identify Palm Shape, Palm Print, and Palm Vein in just 0.35 seconds per hand. The palm data is then compared to a maximum of 3,000 palm templates. The facial camera also supports QR codes, Data Matrix, MicroAztec, and other formats, and the ZKBioAccess Mobile Page supports Dynamic QR codes for T&A/A&C.
Parameters
- ModelSpeedFace-V5L; SpeedFace-V5L[TD]; SpeedFace-V5L[TI]
- Display5″@ ISP Color LCD Screen (720*1280)
- CameraWDR Low Light Camera @ 2MP
- Operation SystemLinux
- HardwareCPU: 1.GHz Dual Core
RAM: 1GB; ROM: 8GB
Supplement Light: Yes
Virtual Keypad: 12 Keys
Fingerprint Sensor: Z-ID - Authentication MethodFace / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)
- Fingerprint Template Capacity6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
- Face Template Capacity6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
- Palm Template Capacity【Customized】 3,000 (1:N) (Standard) / 3,000 (1:1)
- Card Capacity10,000 (1:N) (Optional) / 10,000 (1:1)
- Transaction Capacity200,000 (1:N) (Optional for Capacity Expansion)
- Biometric Verification Speedless than 0.3 sec (Fingerprint)
less than 1 sec (Facial Recognition)
less than 0.35 Sec (Palm) - Touchless Biometric Recognition Distance1cm to 100cm (Facial Recognition)
Up to 50cm(Palm) - False Acceptance Rate (FAR) %FAR ≤ 0.01% ( Visible Light Facial Recognition)
FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0)
FAR ≤ 0.05% (ZKPalm V12.0) - False Rejection Rate (FRR) %FRR ≤ 0.02% ( Visible Light Facial Recognition)
FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0)
FRR ≤ 1.8% ( ZKPalm V12.0) - Biometric AlgorithmZKFace 3.5
ZKPalm V12.0 (Customized)
ZKFingerprint V10.0 - Card TypeID Card@125 kHz (Optional)
IC [email protected] MHz (Optional)
CEPAS(Optional) - QR CodeDynamic or Static QR codes on the ZKBioSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects(Support QR500/600 Series).
- CommunicationTCP/IP*1
Wiegand (Input & Output)*1
RS485: ZKTeco RS485*1*
Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1 - Standard FunctionsADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,
Record Query, Tamper Switch Alarm, Multiple Verification Methods - Power SupplyDC 12V 3A
- Operating Temperature-10°C ~ 45°C (14°F ~ 113°F)
- Operating Humidity10% to 90% RH (Non-condensing)
- Dimensions91.93mm * 202.93mm * 21.5mm (L*W*H)
- Gross Weight1.3 Kg
- Net Weight0.6 Kg
- Supported SoftwareSoftware: ZKBio CVAccess / ZKBioTalk
Mobile App: ZKBio Zlink / ZSmart
Cloud Service: ZKBio Zlink - InstallationWall-mount (Compatible with Asian Gang-box / Single Gang-Box)
- CertificationsISO14001, ISO9001, CE, FCC
